Sale!

Hytera PD362I

Name: Hytera PD362I
SKU: 700528-535
Price: 346.10 USD
Availability: InStock

Original price was: $356.10.Current price is: $346.10.

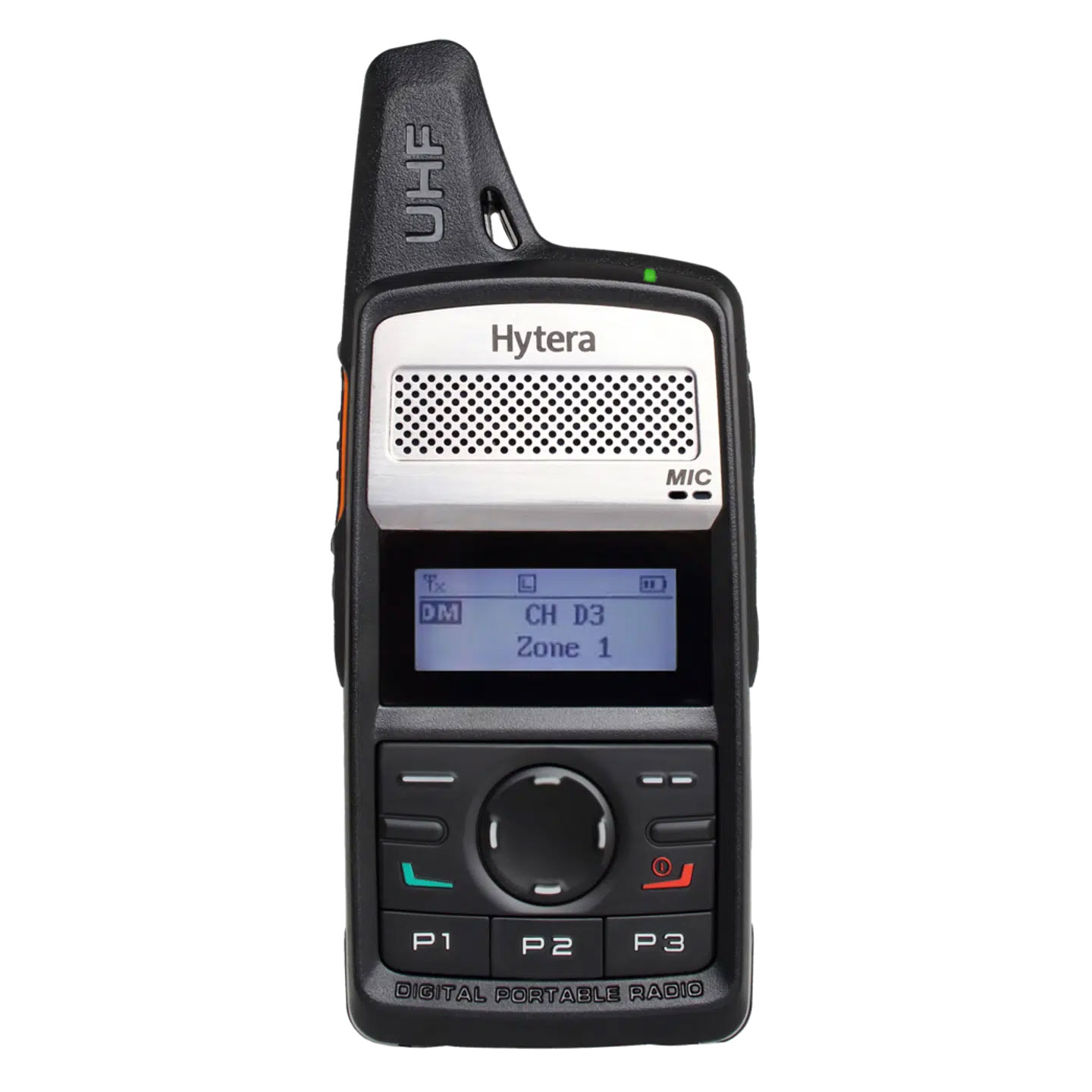

Compact Commercial DMR Two-Way Digital Radio with LCD Display

The Hytera PD362i open-standard DMR radio delivers clear two-way voice and text in a small pocket-sized design. This is the ideal solution for small to medium-sized organizations looking for cost-e?ective and high-quality radio communications.

Functions

ERGONOMIC AND LIGHT WEIGHT

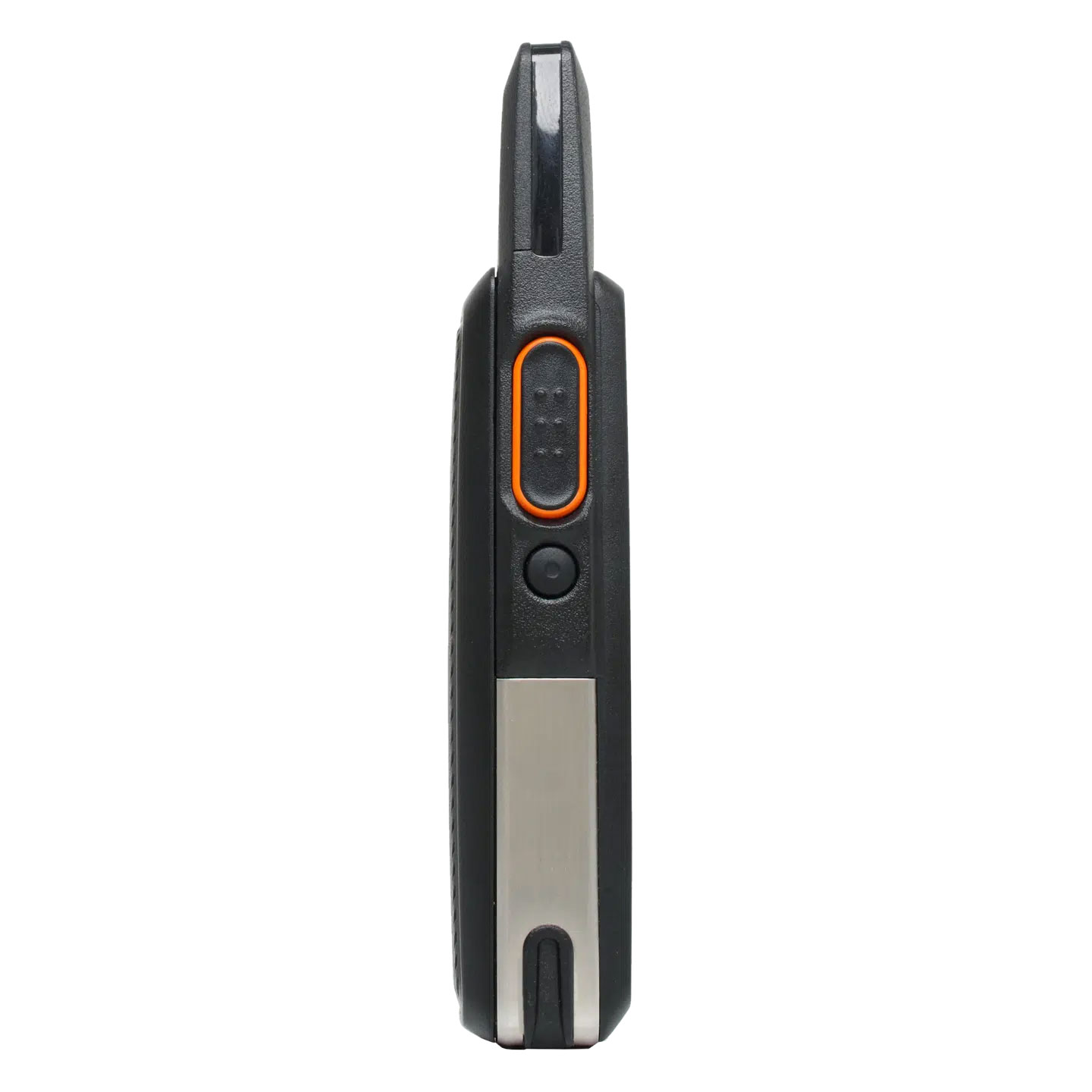

Tactile buttons for no-look PTT and emergency calling. Compact antenna makes the PD362i feel like a cellular phone. Pocket-size design that weighs less than 6 ounces

HIGH-QUALITY AUDI
Audio equalizer adjusts low, mid, and high frequency gain

ANALOG AND DIGITAL DUAL MODES
Supports both analog and digital modes. Allows switching between the two operation modes for communication with analog radios

ANALOG AND DIGITAL AUTO DETECT
Detects the signal type and automatically switches between analog and digital mode

RELIABLE AND DURABLE
Compliant with MIL-STD-810-G for shock and vibration. IP54 rated for water and dust resistance

LED DISPLAY
LED display allows good visibility even under bright daylight. Two-line display for messaging with up to 64 characters

LONG-LIFE BATTERY
Powerful 2000mAh Lithium Ion batteries deliver up to 12 hours of operation in digital mode and 10 in analog mode

ROAMING
This feature enables the radio to switch between sites, ensuring seamless communication.

EMERGENCY MODE
Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm.

QUICK TEXT MESSAGES
One-touch sending of pre-programmed text messages. Up to 10 pre-programmed via CPS

PSEUDO TRUNK

This virtual trunking feature automatically uses whichever digital timeslot is free to improve call connectivity and frequency eﬃciency

UPGRADE FEATURES (Optional)

ENCRYPTION
For secure audio and data

PRIORITY INTERRUPT
Priority Interrupt allows dispatcher to interrupt existing calls with important emergency information

STUN/REVIVE
Enables dispatch and other users to disable/enable a radio if it is stolen, lost, or used maliciously

Technical Specifications

General

Frequency Range	UHF: 400-440MHz UHF: 430-470MHz
Channel Capacity	256 (16 zones with 16 channels per zone)
Zone Capacity	16 Zones with 16 Channels per Zone
Channel Spacing	25/12.5kHz
Operational Voltage	3.7W
Battery	2000mAh (Li-Ion)
Battery Life (5/5/90)	12 hours Digital, 10 hours Analog
Weight	5.64oz (160g)
Dimensions	4 3/16” x 2 11/16” x 29/32” (106 x 55 x 23mm)
Frequency Stability	± 0.5ppm
Antenna Impedance	50Ω

Receiver

Digital Sensitivity	0.22µV (BER 5%)
Analog Sensitivity	0.22µV (Typical) (12dB SINAD) 0.4µV (20dB SINAD) 0.22µV (12dB SINAD)
Adjacent Selectivity	TIA-603: 60dB @ 12.5kHz, 70dB @ 25kHz ETSI: 60dB @ 12.5kHz, 70dB @ 25kHz
Spurious Response Rejection	TIA-603: 70dB @ 12.5/25kHz ETSI: 70dB @ 12.5/25kHz
Intermodulation	TIA-603: 70dB @ 12.5/25kHz ETSI: 65dB @ 12.5/25kHz
Hum and Noise	40dB @ 12.5kHz, 43db @ 20kHz, 45dB @ 25kHz
Rated Audio Power Output	0.4W
Rated Audio Distortion	≤5%
Audio Response	+1 to -3dB
Conducted Spurious Emission	<-57dBm

Transmitter

RF Power Output	UHF 1.5W – 3W
FM Modulation	11K0F3E @ 12.5kHz 16K0F3E @ 25kHz
4FSK Digital Modulation	12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW
Conducted/Radiated Emission	-36dBm 1GHz
Modulation Limiting	±2.5kHz @ 12.5kHz ±5.0kHz @ 25kHz
FM Hum and Noise	40dB @ 12.5kHz, 45dB @ 25kHz
Adjacent Channel Power	60dB @ 12.5kHz, 70dB @ 25kHz
Audio Response	+1 to -3dB
Audio Distortion	≤3%
Digital Vocoder Type	AMBE++
Digital Protocol	ETSI-TS102 361-1,-2,-3

Environmental

Operating Temperature	-22oF to +140oF (-30oC to +60oC)
Storage Temperature	-40oF to +185oF (-40oC to +85oC)
ESD	IEC 61000-4-2 (Level 4)±8kV Contact, ±15kV Air
Dust and Water Ingress	IP54 Standard
Humidity	Per MIL-STD-810 C/D/E/F/G Standard
Shock and Vibration	Per MIL-STD-810 C/D/E/F/G Standard
