H-Series Compact Professional DMR Two-Way Radio with LCD Display, Full Keypad, and Optional GPS and Bluetooth
The Hytera HP682 H-Series DMR radios are the next-generation in creative style and functionality that elevates the industry standard in professional two-way radios.
The HP682 is the new state-of-the-art in digital radio communications, providing a more efficient experience with loud and clear audio, longer battery life, intuitive user interface, extended range, and ruggedness.

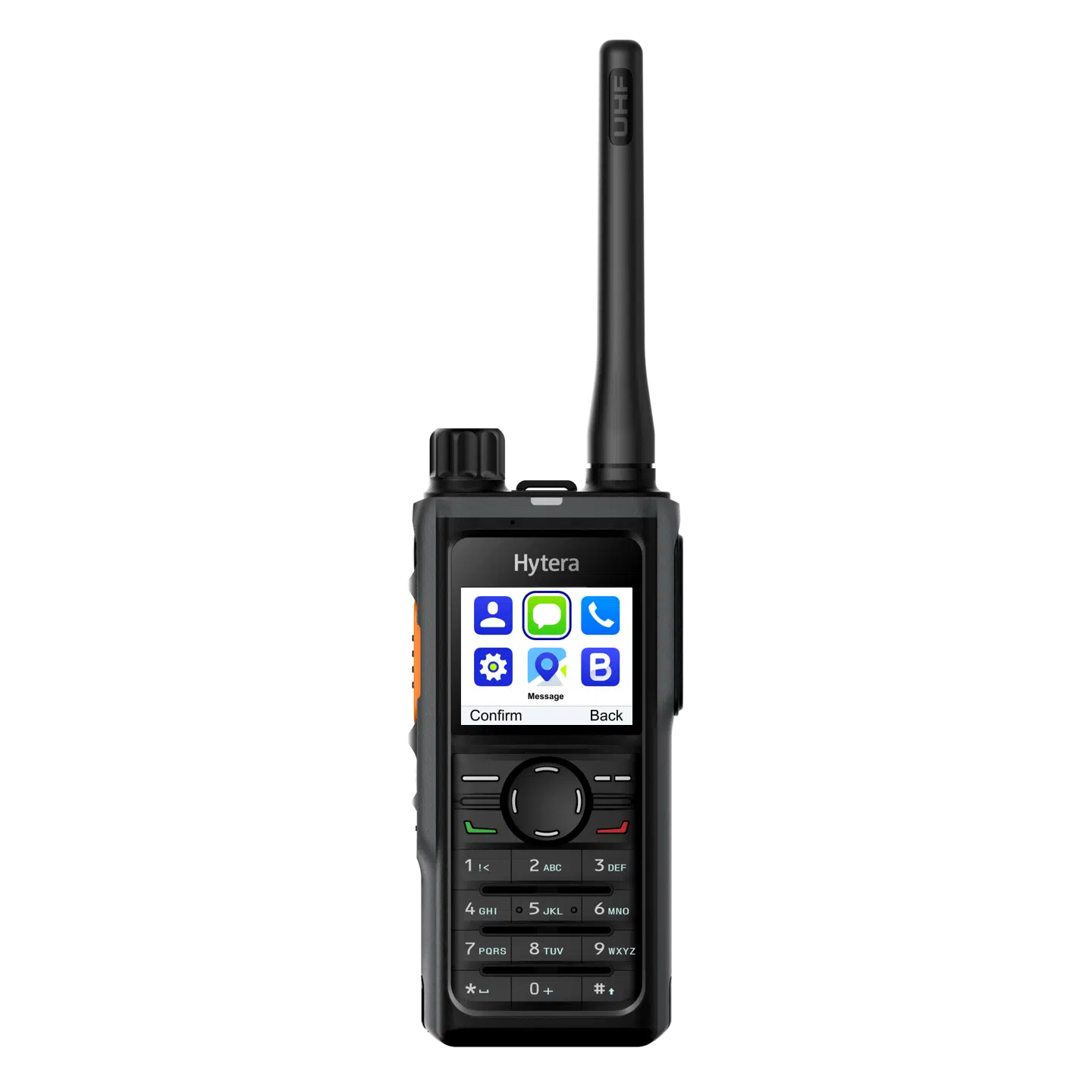

The HP682 features a 1.8″ TFD-LCD display and full keypad that support a wide variety of functions, a 20-hour Lithium Polymer battery, GPS, and industry-leading audio performance.
The HP682H-Series radios empower employees in customer service or severe working environments with efficient and reliable communications.
Functions
Hytera provides industry-leading audio quality through a large forward-facing speaker, and AIbased voice enhancement with deep learning ability that can accurately extract voice from noise in real time and decreases unwanted background noises as loud as 30db. Acoustic feedback suppression prevents howling when multiple radios are in close proximity. New water-porting technology quickly drains water out of speaker cavity to maintain audio clarity.
The HP682 radios are designed for worker safety with a programmable emergency button, emergency calling, and priority interrupt. Lone Worker prompts the user to press a key or speak to indicate they are safe. Man Down allows the radio to automatically enter emergency mode when the radio is inclined at a pre-set angle or remains motionless. Hearing protection prevents the maximum volume when using audio earpieces.
The HP682 is fully compliant with the IP67 and MIL-STD- 810 G standards. It is dustproof, water resistant, and can stand up to drop shock testing at 2 meters. The HP6 Series anti-magnetic speaker does not attract magnetic metal dust and shavings.
The HP682 radios can report current location information to other radios, the dispatcher, or a third-party application in real time, enhancing the efficiency of visualized dispatch applications. GPS data can be transmitted during voice calls for immediate location targeting, and GPS data can be compressed to increase channel capacity and reduce hardware cost.
Built-in Bluetooth supports both audio and data, and enables connectivity to wireless accessories.
The HP682 extends radio range through increased Tx power, Rx sensitivity, improved antenna gain, and reduced attenuation. This produces a 25% increase in coverage distance and signal penetration through buildings. The enhanced coverage improves efficiency and reduces network infrastructure costs. Two patented technologies and a voice buffer reduces packet loss during Rx handover for consistently clear calls and fewer dropped words.
An optimized mechanical design with advanced materials, and a lightweight lithium polymer battery delivers a compact radio that weighs less than 10 ounces.
The latest in lithium polymer technology is used to power the HP6 Series radios for excellent performance. The battery is light and small, achieving a shift life of 20 hours on high transmit power with a duty cycle of 5/5/90.
The HP682 features a 1.8” 160×128 LCD display with 65,536 colors and 6 lines of content. The clear and bright LCD display provides a wide variety of status, configuration, and notification information.
The HP682 supports Digital End-to-End and Over-the-Air Encryption for voice and data transmitted on digital channels to prevent eavesdropping. Hardware encryption is implemented through a built-in encryption card. Software encryption uses the secure and reliable ARC4 and AES encryption algorithms. Radio authentication prevents unauthorized users from accessing the system. If a radio is lost or stolen, the system can Stun or Kill the radio to prevent unauthorized use.
The HP682 can be deployed in a wide variety of analog and digital radio networks, including Analog and Digital Conventional, MPT and XPT Trunking, DMR Tier II Trunking, IP Multi-Site Connect, and DMR Simulcast Systems.
A variety of calling modes provides the flexibility to communicate with any or all users. The HP6 Series supports Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), Unaddressed Group Calls (asingle call to multiple groups), All Call (broadcast call to all radios, transmit only), and Telephone Calls (requires connectivity to PSTN, PABX or SIP networks).
DTMF is a system of analog tonal signals that enables routing telephone calls to radio networks. DMTF is also used to control physical devices such as irrigation systems, motorized gates and doors, and other devices. The HP6 radios can send DTMF signals manually (with HP682 keypad) or send up to 256 stored pre-programmed DTMF strings.
Technical Specifications
General
| Frequency Range | UHF 400-527 MHZ , VHF 136-174MHz |
| Channel Capacity | 1,024 Channels (512 Analog, 512 Digital) |
| Zone Capacity | 64 Zones with 256 Channels per Zone |
| Channel Spacing | 12.5kHz / 20kHz / 25kHz |
| Operational Voltage | 7.7V (Rated) |
| Battery | 2000mAh Li-Ion Polymer |
| Battery Life (5/5/90) | 16 Hours with GPS on, 20 Hours GPS disabled |
| Weight | 9.88oz (280g) |
| Dimensions (H x W x D) | 43/4” x 25/32” x 17/32” (122 x 55 x 31.5mm) (without antenna) |
| Frequency Stability | ± 0.5ppm |
| Antenna Impedance | 50Ω |
| Display | LCD 1.8”, 160×128, 65,536 colors, 6 rows |
| Bluetooth | BT 5.0 BLE+EDR |
GPS (5 Satellites visible at nominal 130dBm)
| Time to First Fix Cold Start | <60 Seconds (Typical TTFF) |
| Time to First Fix Hot Start | <10 Seconds (Typical TTFF) |
| Horizontal Accuracy | <5 meters Receiver |
Receiver
| Digital Sensitivity | 0.18μV (BER 5%) |
| Analog Sensitivity | 0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD) |
| Adjacent Selectivity | TIA-603: 60dB@12.5kHz, 70dB@20/25kHz ETSI: 60dB@12.5kHz, 70dB@20/25kHz |
| Spurious Response Rejection | TIA-603: 70dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHz |
| Intermodulation | TIA-603: 70dB@12.5/20/25kHz ETSI: 65dB@12.5/20/25kHz |
| Hum and Noise | 40dB@12.5kHz, 43dB@20kHz, 45dB@25kHz |
| Rated Audio Power Output | 0.5W |
| Rated Audio Distortion | ≤3% |
| Audio Response | +1 to -3dB |
| Conducted Spurious Emission | <-57dBm |
Transmitter
| RF Power Output | VHF High Power: 5W, VHF Low Power: 1W UHF High Power: 4W, UHF Low Power: 1W |
| FM Modulation | 11K0F3E @ 12.5kHz 14K0F3E @ 20kHz 16K0F3E @ 25kHz |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW |
| Conducted/Radiated Emission | -36dBm 1GHz |
| Modulation Limiting | ±2.5kHz @ 12.5kHz, ±4.0kHz @ 20kHz, ±5.0kHz @ 25kHz |
| FM Hum and Noise | 40dB @ 12.5kHz, 43dB @ 20kHz, 45dB @ 25kHz |
| Adjacent Channel Power | 60dB @ 12.5kHz, 70dB @ 25kHz |
| Audio Response | +1 to -3dB |
| Audio Distortion | ≤3% |
| Digital Vocoder Type | AMBE+2TM |
Environmental
| Operating Temperature | -0°F to +140°F (-20°C to +60°C) |
| Storage Temperature | -40°F to +185°F (-40°C to +85°C) |
| ESD | IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air |
| Dust and Water Ingress | IP67 Standard |
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard |
Ordering Information
| HP682-Um | UHF 400-527MHz (Antenna 400-470MHz), 1-4W |
| HP682-V1 | VHF 136-174MHz (Antenna 153-164MHz), 1-5W |
| HP682-G-BT-Um | UHF 400-527MHz (Antenna 400-470MHz), 1-4W, with GPS and Bluetooth |
| HP682-G-BT-V1 | VHF 136-174MHz (Antenna 153-164MHz), 1-5W with GPS and Bluetooth |
