TLK-25

$240.00

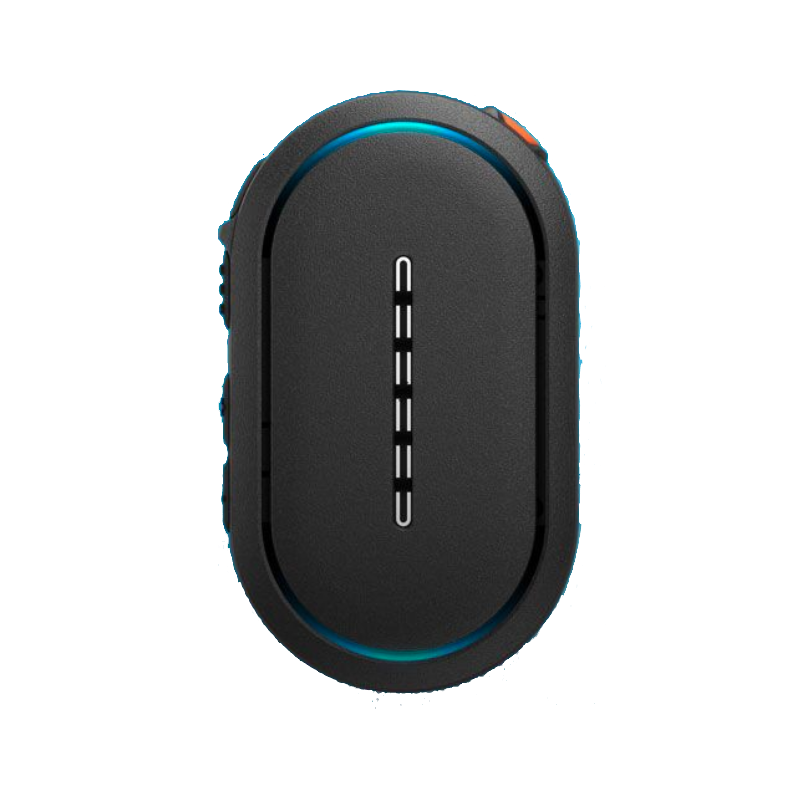

Keep your team connected with the TLK 25, a wearable WAVE PTX device that expands beyond push-to-talk capabilities. Compact, rugged and equipped with an intuitive voice assistant, TLK 25 devices make communication easy and reinforce safety, even at an extended range.

Lone Worker
Man Down
Emergency Calling
Radio Interoperability
Large Talkgroups
User Check
Discreet Listening
Ambient Listening
Remote Enable/Disable
Area Based Talkgroups

TLK 25 & TLK 25 WI-FI

CONNECTIVITY
TLK 25 offers Wi-Fi connectivity
and also uses nationwide LTE when
Wi-Fi is not available.
TLK 25 Wi-Fi uses your wireless
Internet connection to get your
communications online.

SMALL, SLEEK AND SMART
The lightweight, wearable design is shaped for safety,
offering durability and discreetness.

INTUITIVE VOICE ASSISTANCE
Voice commands allow hands-free access to communications,
device settings, safety features, statuses, notifications and alerts.

PACKAGED ECOSYSTEM
Part of the WAVE PTX ecosystem, TLK 25 devices
offer dedicated emergency features.

Wi-Fi only device specifications

GENERAL SPECIFICATIONS
Network	2.4, 5 GHz Wi-Fi
Channel Capacity	96 Channels
Contact List	300 Contacts
Dimensions	3.2 x 1.9 x 0.7 in (82 x 48 x 18.7mm)
Weight (with Embedded Battery)	2.6 oz (73g)
Battery Capacity	1260mAh
Battery (Type Battery) Operating Hours 5:5:90 Duty Cycle	16 hours
IP Rating	IP67
Ports	USB Type-C (use for charging) 3.5mm audio jack
Sensor	Accelerometer
Apps	Powered by WAVE PTX
Encryption	AES 256

AUDIO SPECIFICATIONS
Digital Vocoder Type	OPUS
Audio Response	+1, -3
Audio Distortion at Rated Audio	<1%
Maximum Speech Loudness by Default1	115 dB SPL

WIFI SPECIFICATIONS
Frequency Range	2.4 GHz, 5 GHz
Standards Supported	802.11 a, b, g, n, ac
Security Protocol Supported	WPA2 (personal and enterprise), WPA3 (personal)
Maximum Number of SSIDs	5

BLUETOOTH
Version	5.0 LE
Range	10m
Supported Profiles	HSP, SPP, GATT
Simultaneous Audio Connection	1

ENVIRONMENTAL SPECIFICATIONS
Operating Temperature	-20ºC to 60ºC (radio), -10ºC to 60ºC (with battery)
Storage Temperature	-40°C to 85°C
Thermal Shock	Per MIL-STD
Humidity	Per MIL-STD
Electrostatic Discharge	Per MIL-STD
Dust and Water Intrusion	IP67
Packaging Test	Per MIL-STD

LTE + Wi-Fi device specifications
GENERAL SPECIFICATIONS
Network LTE, FDD:	B2, B4, B5, B13, B66 – 2.4, 5 GHz Wi-Fi
Channel Capacity	96 Channels
Contact List	300 Contacts
Dimensions	3.2 x 1.9 x 0.7 in (82 x 48 x 18.7mm)
Weight (with Embedded Battery)	2.7 oz (77 g)
Battery Capacity	1260mAh Battery (Type Battery) Operating Hours 5:5:90 Duty Cycle
IP Rating	IP67
Ports	USB Type-C (use for charging)
3.5mm audio	jack
Sensor	Accelerometer
SIM	1x 4FF Nano SIM
Apps	Powered by WAVE PTX
Encryption	AES 256

GNSS SPECIFICATIONS
Constellation Support	GPS, GLONASS, Galileo, Beidou, A-GNSS
Time to First Fix, Cold Start	60s
Time to First Fix, Hot Start	10s
Horizontal Accuracy	5m

AUDIO SPECIFICATIONS
Digital Vocoder Type	OPUS
Audio Response	+1, -3
Audio Distortion at Rated Audio	<1%
Maximum Speech Loudness by Default1	115 dB SPL

WIFI SPECIFICATIONS
Frequency Range	2.4 GHz, 5 GHz
Standards Supported	802.11 a, b, g, n, ac
Security Protocol Supported	WPA2 (personal and enterprise), WPA3 (personal)
Maximum Number of SSIDs	5

BLUETOOTH SPECIFICATIONS
Version	5.0 LE
Range	10m
Supported Profiles	HSP, SPP, GATT
Simultaneous Audio Connection	1

ENVIRONMENTAL SPECIFICATIONS
Operating Temperature	-20ºC to 60ºC (radio) -10ºC to 60ºC (with battery)
Storage Temperature	-40°C to 85°C
Thermal Shock	Per MIL-STD
Humidity	Per MIL-STD
Electrostatic Discharge	Per MIL-STD
Dust and Water Intrusion	IP67
Packaging Test	Per MIL-STD
