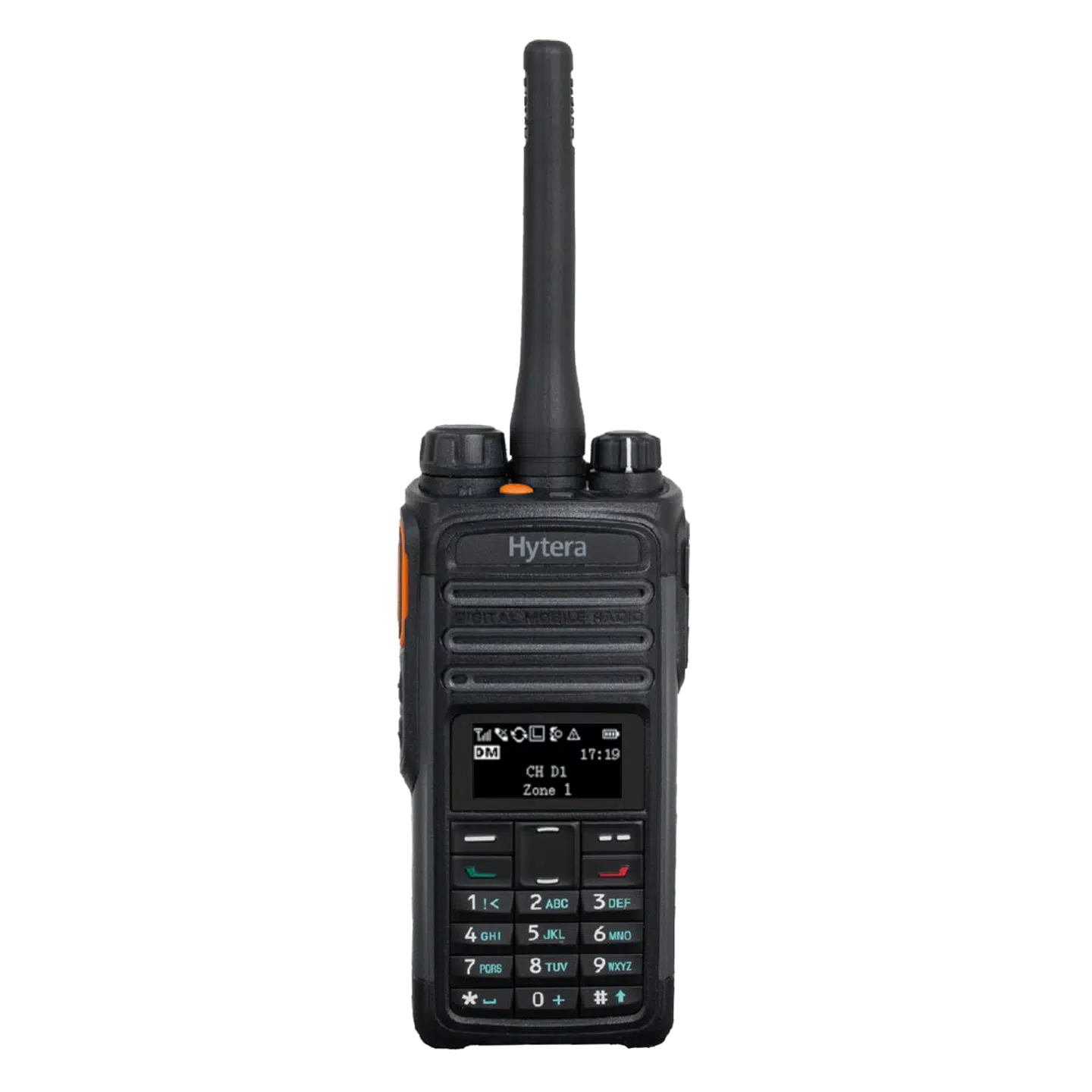

Commercial UHF and VHF Two-Way DMR Radios with LCD Display and Optional Bluetooth and GPS
The PD482i is a cost-effective two-way radio with advanced features:
- Functions in digital and analog modes in radio-to-radio calls, or with any Hytera repeater or base station
- Rugged and ergonomic design with a full keypad, high contrast OLED screen, and programmable buttons
- Built-in GPS and Bluetooth, emergency calls, and voice-activated communications (VOX)
- Supports Tier II radio networks, pseudo trunking, and Radio Registration Service for connectivity to dispatch applications
Functions
Emergency Alarms can be sent to other radios via the one touch programmable button
Simultaneously monitors analog and digital modes and automatically responds in each mode
Ensures private and secure voice and data transmission
Real-time display, call logs, GPS synchronization, and messaging
Free-form text messaging with full keypad. Stores up to ten pre-dedefined text messages
The built-in GPS enables real-time location tracking for dispatch applications (only on PD482i-G-BT models)
Built-in Bluetooth enables connectivity to earpieces and other wireless accessories (only on PD482i-G-BT models)
Voice activated communications (VOX) activates the microphone by speaking to enable hands-free operatio. Also supported on external earpiece and microphone accessories
Allows radios to seamlessly move between connected repeaters with uninterrupted voice transmission
This virtual trunking feature automatically uses whichever digital timeslot is free to improve call connectivity and frequency efficiency
RRS allows the PD482i to communicate with dispatch and unified communications applications
Tactile buttons for no-look PTT and emergency calling
Audio equalizer adjusts low, mid, and high frequency gain. Provides the best audio performance in noisy or quiet environments
Powerful Li-Ion 2000mAh battery delivers up to 22 hours of operation in digital mode and 16 hours in analog mode
Compliant with MIL-STD-810 G for impact strength and durability, and IP54 water and dust ingress
Technical Specifications
General
| Frequency Range | UHF: 350-470MHz VHF: 136-174MHz |
| Channel Capacity | 256 Channels (128 Analog, 128 Digital) |
| Zone Capacity | 16 Zones with 16 Channels per Zone |
| Channel Spacing | Analog: 12.5kHz / 20KHz / 25KHz Digital: 12.5kHz |
| Operational Voltage | 7.4W |
| Battery | 2000mAh (Li-Ion) Standard, 1500mAh Optional |
| Battery Life (5/5/90) | 22 hours Digital, 16 Analog (Standard 2000mAh) 16 hours Digital, 11 Analog (Optional 1500mAh) |
| Weight | 10.86oz (308g) |
| Dimensions | 4 5/8” x 2 5/32” x 1 15/32” (117 x 55 x 37mm) |
| Frequency Stability | ± 0.5ppm |
| Antenna Impedance | 50Ω |
GPS
| TTFF (Time to First Fix) Cold Start | <50 Seconds |
| TTFF (Time to First Fix) Hot Start | <5 Seconds |
| Horizontal Accuracy | <10 meters |
Receiver
| Digital Sensitivity | 0.22µV (BER 5%) |
| Analog Sensitivity | 0.22µV (Typical) (12dB SINAD) 0.4µV (20dB SINAD) 0.22µV (12dB SINAD) |
| Adjacent Selectivity | TIA-603: 60dB @ 12.5kHz, 70dB @ 25kHz ETSI: 60dB @ 12.5kHz, 70dB @ 25kHz |
| Spurious Response Rejection | TIA-603: 70dB @ 12.5/25kHz ETSI: 70dB @ 12.5/25kHz |
| Intermodulation | TIA-603: 70dB @ 12.5/25kHz ETSI: 65dB @ 12.5/25kHz |
| Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
| Rated Audio Power Output | 0.5W |
| Rated Audio Distortion | ≤3% |
| Audio Response | +1 to -3dB |
| Conducted | <-57dBm |
Transmitter
| RF Power Output | VHF High Power: 5W, VHF Low Power: 1W UHF High Power: 4W, UHF Low Power: 1W |
| FM Modulation | 11K0F3E @ 12.5kHz 16K0F3E @ 25kHz |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW |
| Conducted/Radiated Emission | -36dBm 1GHz |
| Modulation Limiting | ±2.5kHz @ 12.5kHz |
| FM Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
| Adjacent Channel Power | 60dB @ 12.5kHz, 70dB @ 25kHz |
| Audio Response | +1 to -3dB |
| Audio Distortion | ≤3% |
| Digital Vocoder Type | AMBE++ |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
Environmental
| Operating Temperature | -22oF to +140oF (-30oC to +60oC) |
| Storage Temperature | -40oF to +185oF (-40oC to +85oC) |
| ESD | IEC 61000-4-2 (Level 4)±8kV Contact, ±15kV Air |
| Dust and Water Ingress | IP54 Standard |
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard |
Ordering Information
| PD482i-G-BT-Uv | UHF 350-470MHz (Antenna 400-470), 256CH, 4W, GPS, Bluetooth |
| PD482i-G-BT-V1 | VHF 136-174MHz (Antenna 147-160 ), 256CH, 1-5W, GPS, Bluetooth |
| PD482i-Uv | UHF 350-470MHz (Antenna 400-470) 256CH, 4W |
| PD482i-V1 | VHF 136-174MHz (Antenna 147-160) 256CH, 1-5W |
