Hytera BD302i

Name: Hytera BD302i
SKU: 700528-529
Availability: InStock

$349.00

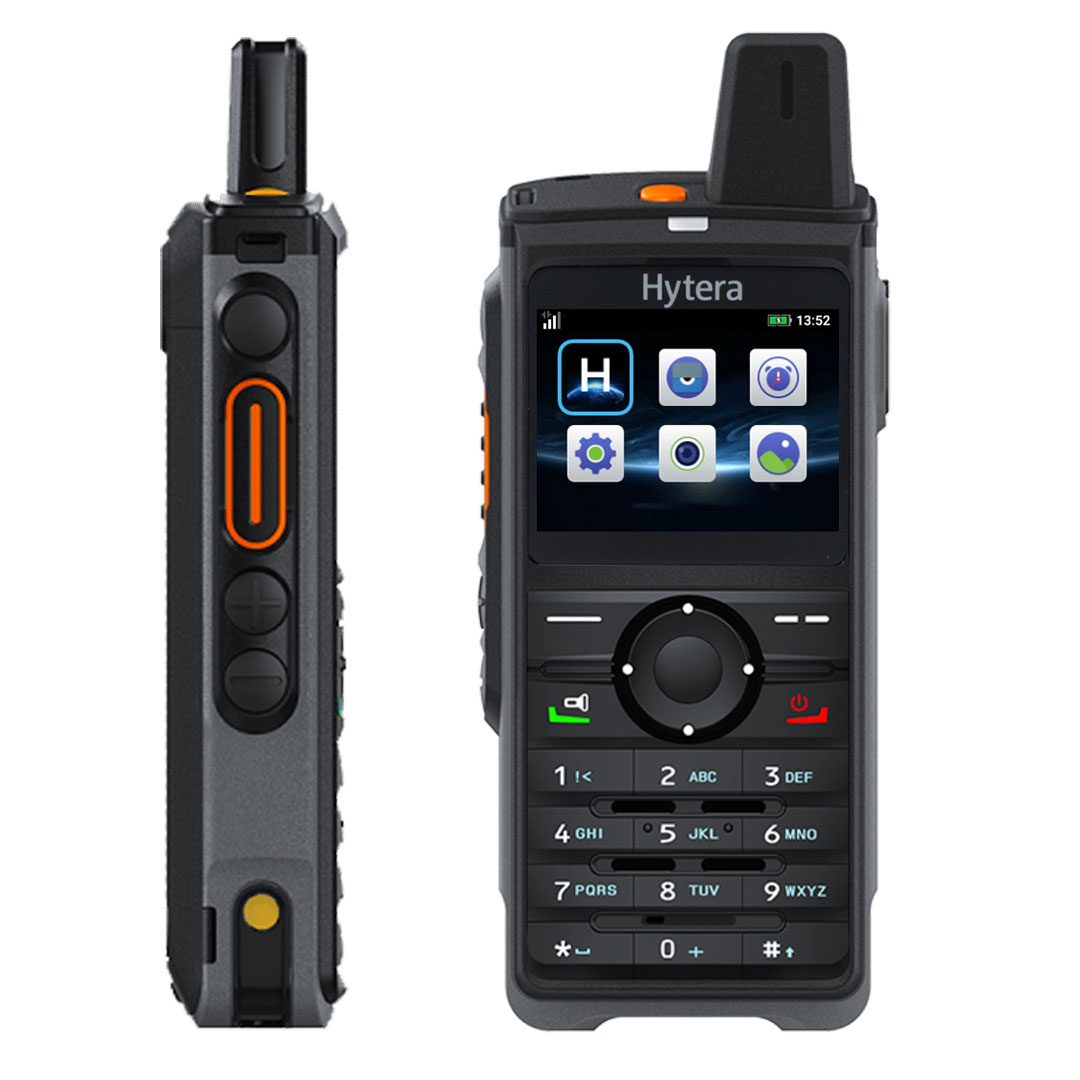

The feature-rich PNC380S is an easy-to-operate handheld PoC device that utilizes nationwide 4G/LTE cellular and Wi-Fi networks for unlimited coverage and capacity.

Advanced noise suppression for clear audio in loud environments

Rugged and IP rated to withstand dirt, dust, and moisture

Powerful battery delivers up to 18 hours of operation time

Built-in GPS, Bluetooth, Wi-Fi, and LED flashlight

PTCRB Certified, AT&T and T-Mobile Network Approved

Full Keyboard

Car kit option for mounting in vehicles

High-definition live video

Improved battery that delivers up to 24 hours of operation

Functions

CERTIFIED NATIONWIDE COVERAGE

PTCRB certified, AT&T and T-Mobile approved Network Ready, and fully approved and tested by the leading US carrier for reliable nationwide connectivity

HIGH-DEFINITION LIVE VIDEO

Equipped with an 8 megapixel rear camera, the PNC380S enables real-time video streaming. Video communications improves situational awareness, and facilitates problem solving and decision making

GPS POSITIONING

Built-in GPS enables real-time tracking and positioning for the Hytera Dispatch application

ERGONOMIC DESIGN

Compact and ergonomic design with easy-access buttons enables comfortable one-hand operation. Reversible belt clip for carrying with screen facing in or out

BUILT-IN BLUETOOTH

Built-in Bluetooth enables connectivity to earpieces, Push-to-Talk devices, and other wireless accessories

RELIABLE AND DURABLE

IP67 rated for protection from dust and water ingress up to 1 meter for 30 minutes. Compliant with MIL-STD-810-G for shock and vibration

LONG-LIFE BATTERY

Powerful 4,000mAh Lithium-Ion Polymer battery delivers up to 24 hours of operation

TEXT MESSAGING

Send, receive, and view text messages between dispatcher and other Hytera PoC devices

STUN/REVIVE

Dispatcher can remotely stun (disable) or revive (return to service) if the radio is lost or stolen

Technical Specifications

Network Standards

LTE	FDD:B2/B4/B5/B7/B12/B13/B25/B26
WCDMA	B1/B2/B4/B5/B8
GSM	850/1900 MHz
WLAN	2.4GHz and 5GHz, 802.11 b/g/n
Bluetooth	BT 4.2
Positioning System	GPS/A-GPS

General Specifications

Dimensions (H x W x D)	5 27/32” x 2 3/8” x1 1/8” (148 x 60 x 28mm)
Weight (with battery)	208g (with battery)
Memory	RAM: 1GB ROM: 8GB Extended: Micro SD/TF card, up to 32GB
SIM Card	Nano SIM 12.3mm x 8.8mm
Display	2.0” 320×240 TFT/Non-touch
Ports	Micro USB 2.0 3.5mm Audio Jack Dock Charger Interface CAR KIT Connection Interface
Video and Images	Micro USB 2.0 3.5mm Audio Jack Dock Charger Interface CAR KIT Connection Interface Images: 8MP
Operating Voltage	3.85V (Rated)
Battery	4000mAh (Li-ion)
Battery Life	≥24h (5-5-90 working cycle)

Transceiver

Audio Power Output	1W (Rated) (Max: 2W)
Mic	Mic with Digital noise suppression

Environmental

Dust and Water Proof	IP67 Standard
Shock & Vibration	MIL-STD-810 G Standard
Drop Resistance	1.2m
ESD	IEC 61000-4-2 ±8 kV (Contact) ±12 kV (Air)
Operation Temperature	-4F to +140F (-20C to +60C)
Storage Temperature	-22F to +158F (-30C to +70C)
